ISO 9001 & IATF 16949 Certified Steel Brake Line Tube Manufacturer

Engineered Industries Limited has been a major manufacturer of steel brake line tubing (also known as Bundy tube, hard brake line) used for automotive hydraulic brake lines for over two decades.

Advantages

• Quick delivery.
• Low MOQ (minimum order quantity).
• Flexible shipping channels (airway cargo and ocean liner).
• Flexible payment channels (bank transfer, PayPal, Payoneer, Western Union etc.).
• Custom packaging accepted.
• Branding with your own business information accepted.
• Always trying to reduce your overall purchase cost.

Products & Services

1. Metal tubing used for automotive hydraulic lines (brake, fuel, power steering, cooler etc.)Zinc plated steel tubing
   • PVF coated steel brake line tubing
   • Nylon coated steel brake line tubing
   • Epoxy coated steel brake line tubing
   • Stainless steel brake line tubing
   • Copper brake line tubing
   • Copper nickel brake line tubing
   • Titanium tubing
2. Pre-bent tube assembly manufacture services
3. Hardware for brake lines made of mild steel, stainless steel, brass and titanium
   • Nuts
   • Nipples (fittings)
   • Unions

To Whom We Supply

• OEM Tube assembly fabrication companies, who offer tube end forming (e.g. flaring), bending or connection with hydraulic hoses, to ultimately supply tube assemblies ready to be installed on vehicles;
• Distributors,  wholesales, and retailers whose ultimate clients are individuals and repair shops that use the tubing make replacement tubes on their own.

Our Clients

Clients of ours and our patners’ are major sub-contractors of the pre-bent tube assemblies who are offering bending, flaring services etc. The ultimate OEM products are supplied to the following auto makers:

• BYD Auto
• Geely Auto
• Chery Auto
• etc.

Quality

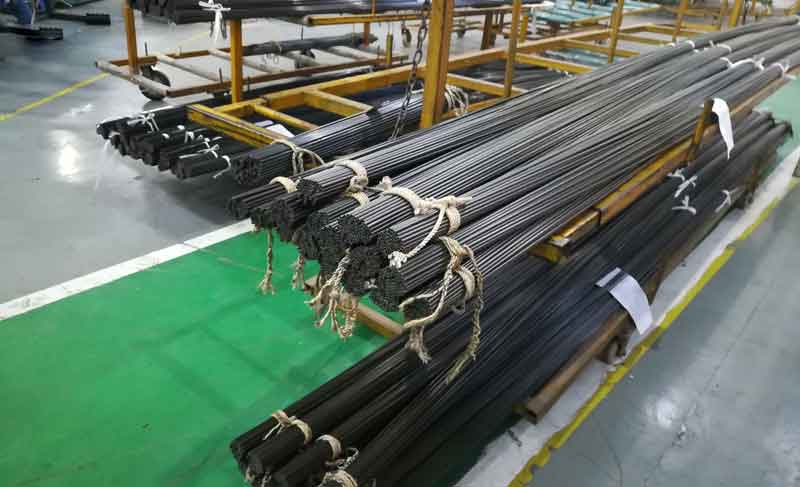

The steel brake line tubes are used as a common automotive tubing for hydraulic brake, fuel, transmission cooling, and power steering lines.

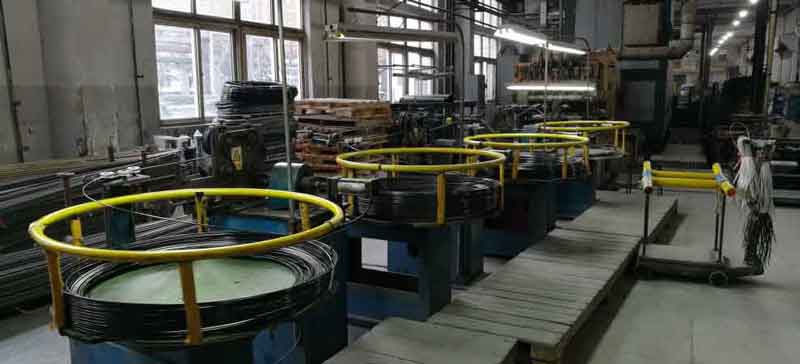

The basic tubes are copper brazed steel tubes,  made to general automotive standard specifications like SAE J527, ASTM A254. They are further treated by zinc plating (galvanizing), GALFAN coating, PVF coating, aluminum-rich epoxy coating, and nylon coating for enhanced protection against corrosion.

The final tubes meet major industrial standards like JASO M101, GM123M/124M etc., and the are strictly tested because they must be in good condition to ensure the safety driving of vehicles on and off road.

Certifications

• ISO 9001
• IATF 16949

Online Monitoring

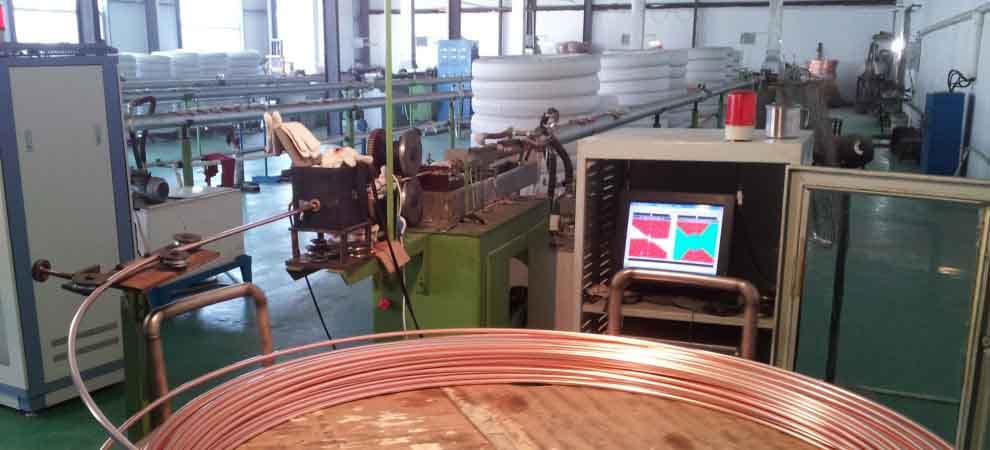

When tube is formed and brazed in the continuous production line, instant Eddy current automatic inspection system keeps detecting any potential imperfections of inner structure of the tube. Once the imperfections are detected, they will be automatically shown and notified by the system:

1. An alarm sound is triggered and broadcast by a loud speaker.
2. A flashing alert light on the machine shall be turned on.
3. An automatic online printer shall mark the tube sections with imperfections with ink, then the imperfect tube sections shall be cut and removed.

Mechanical Performance Tests

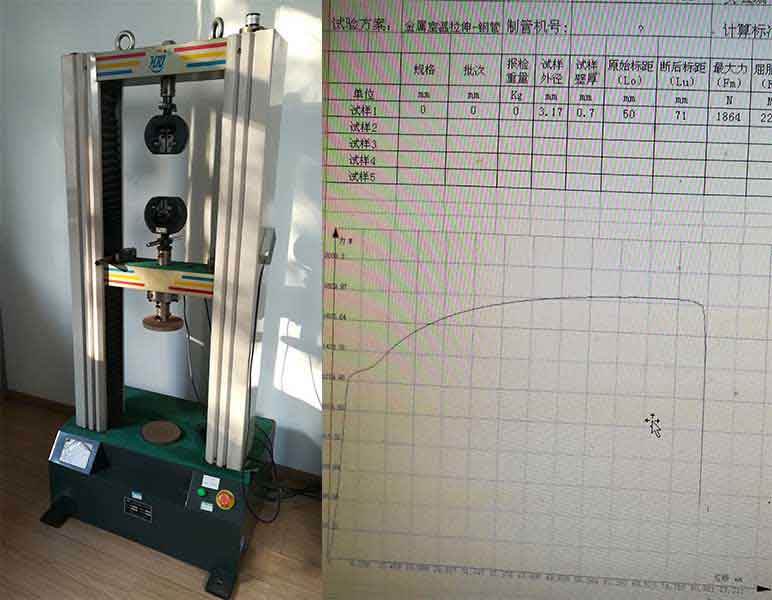

1. Tensile test.

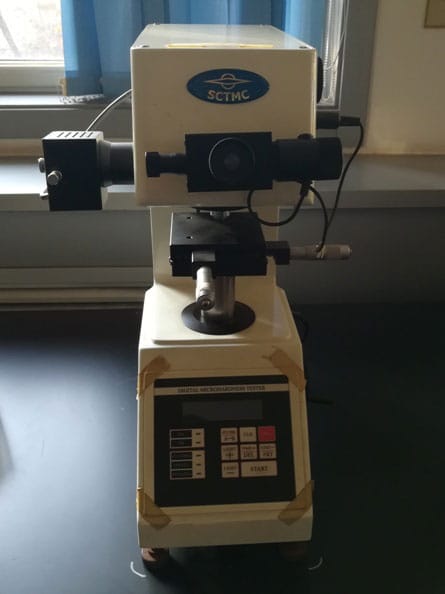

2. Hardness test.
3. Bending test.
4. Expansion test.
5. Developing test.
6. Flattening and bending test.
7. Pressure-proof test.
8. Burst pressure test.

Surface Coating Tests

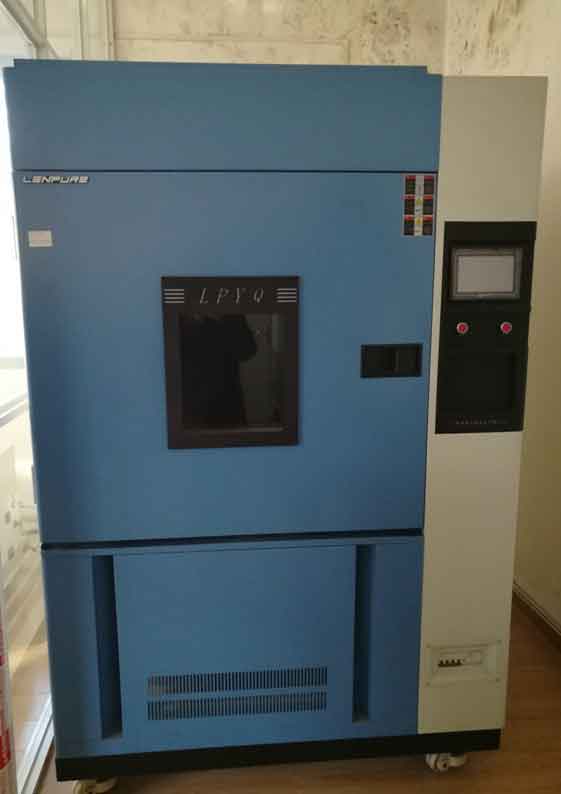

The following tests shall be conducted to determine how the surface coating/plating performs when protecting the brake line tubes from corrosion.

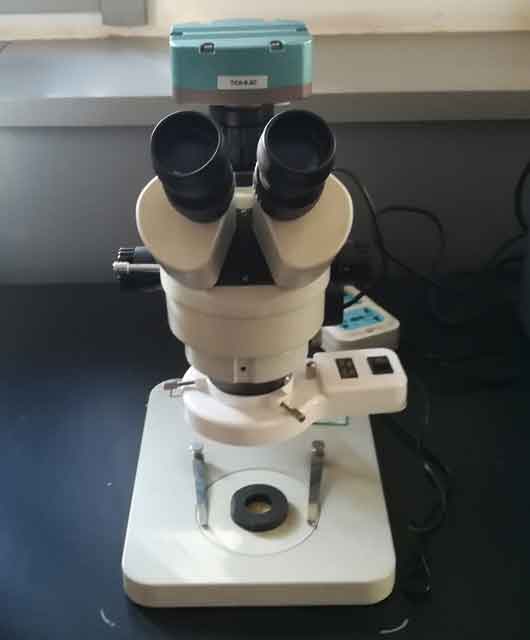

1. Coating/plating thickness test.

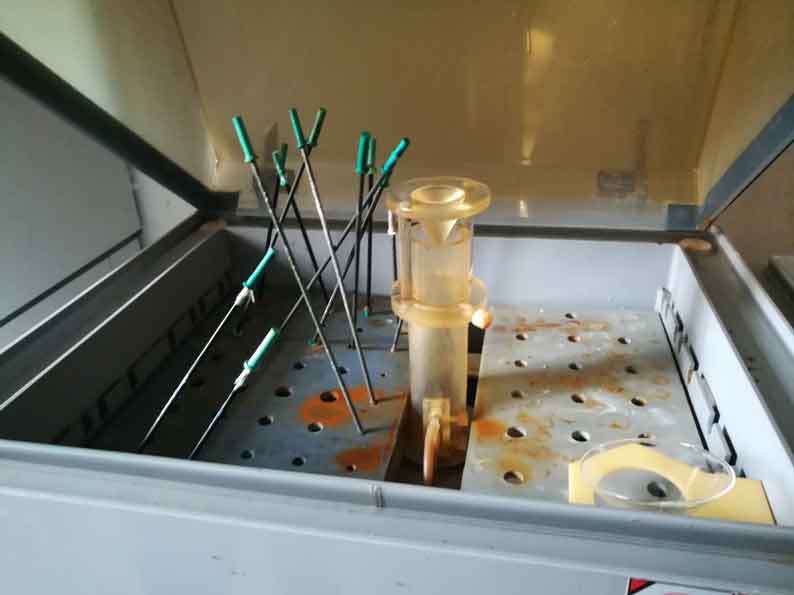

2. Corrosion resistance test (neutral salt spray, i.e. NSS).
3. Film performance test (varies according to coating/plating types).
