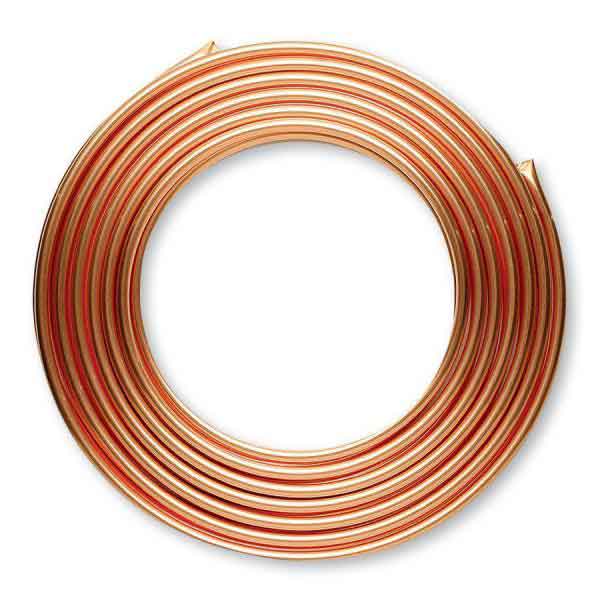

4.76mm 3/16″ OD Copper Tubing Brake Pipe Wholesale

This copper brake pipe is made of pure copper, by giant Chinese copper tube manufacturers that are ISO 9001 certified.

  • Much more flexible than steel tubing
  • Extremely easy to bend and flare
  • Meets SAE and BS EN standards
  • Suitable for ISO/DIN bubble flare, ISO/SAE double flare (inverted flare), and single flare.

Properties

OD4.76+/-0.08mm
Wall0.7+/-0.08mm
Tensile Strength40 ksi (205MPa)
Expansion40% min
Theoretical Burst Pressure12388psi i.e. 85.4MPa min

NOTE:

  1. We can also supply tubing of 0.75mm, or even thicker wall , to further increase pressure resistance.
  2. Burst pressure calculation could vary according to the stress limit applied to the formula.

Pb=2σbδ/(D0-0.8δ)

Where

Pb– Burst pressure, MPa
σb– Tensile strength, MPa (205MPa applied)
D0– Outside diameter, mm
δ – Wall thickness, mm

Inspections

  1. Eddy Current (Non-Destructive)
  2. Flattening Test
  3. Expansion Test
  4. Tension Test
  5. Pressure Proof Test
  6. Mercurous Nitrate Test
